PRODUCT FEATURES
- Excellent explosion-proof performance, can work safely in flammable and explosive places.
- Use high-efficiency, long-life gas discharge lamps and imported high-purity speculara alumina reflectors.
- Through accurate light distribution design, the lamps have high efficiency, good lighting effect and high brightness.
- Adopting the latest surface treatment technology through precise structure design, it can prevent rain and water spray.
- Using high-strength aluminum alloy shell, with strong collision and impact resistance. Can be used in a variety of mounting methods such as seat, wall, ceiling.
PRODUCT PARAMETERS
| Item | Symbol | Description | Unit |

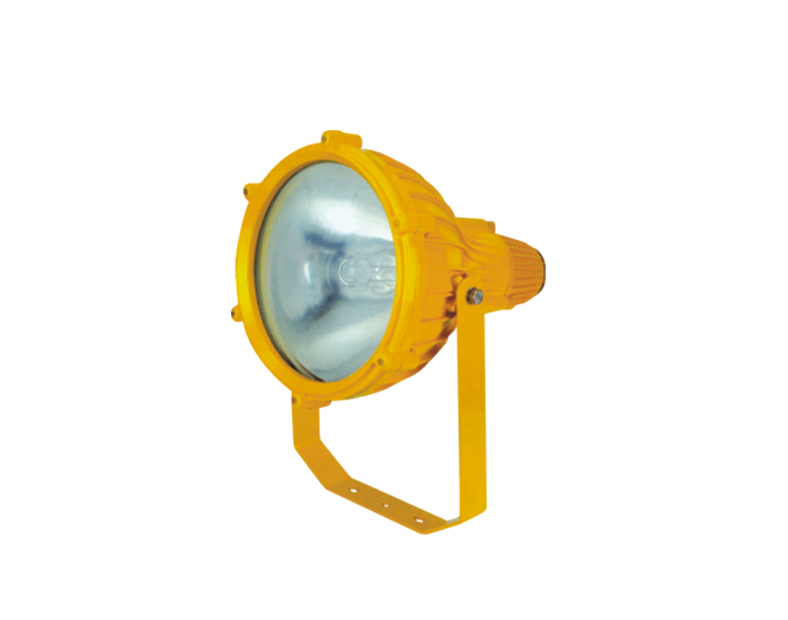

| Picture |  |
||
| Rated Voltage | VOLT | 220 | V |
| Power | P | 250/400 | W |
| Lighting Source | / | MH/HPS | |
| Protection Level | IP | IP65 | IP |
| Lighting Angle | θ | 90/120 | ° |
| Anti-corrosion Grade | / | WF2 | |
| Explosion Proof Grade | / | Ex d e IIC T4 | |
| Light Efficiency | η | 90 | Lm/W |
| Frequency | f | 50/60 | Hz |
| Power Factor | PF | ＞0.90 | PF |
| Operating Temperature | TOPR | -30~50 | ℃ |
| Storage Temperature | TOPR | -30~50 | ℃ |
| Color Rendering Index | CRI | ≥65 | RA |
| LED’S Operating Life | LIFE | 50000 | Hours |
| Start-up Time | T | ≤20 | S |
| Executive Standard | / | GB3836.1、GB3836.2 | |
| Weight | / | 14.0 | KG |
| Size | / | Φ368×460 | MM |
