PRODUCT FEATURES
- Configuration: Using imported LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, has short circuit and over voltage protection functions, and greatly prolongs the service life of lamps and lanterns.
- The radiator adopts an integrated streamlined structure, which can better increase the heat conduction. The radiator is arranged in an internal and external circular array to improve the heat dissipation performance.
- Anti-glare: toughened glass cover (transparent and frosted two options), anti-impact, anti-glare, so that the light uniform and soft without shadows, transmittance up to 95% – 98%, suitable for all kinds of low-roof, platform, high-roof, high-roof and other places as fixed lighting.
- Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and rust.

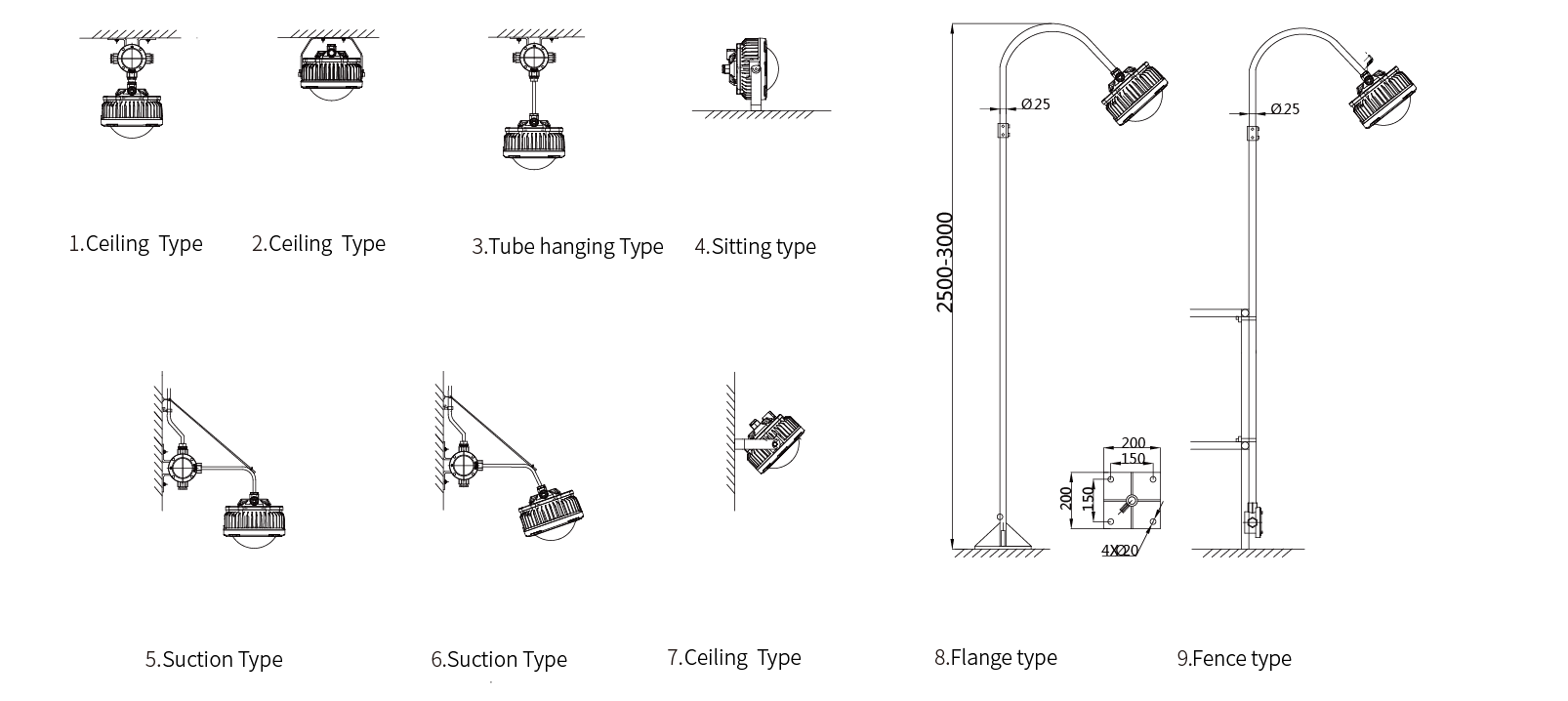

- Installation mode: Suspension ceiling, bending rod, vertical rod, top ceiling, U-shaped shock-proof bracket (angle adjustable) and other installation modes can be adopted as required.
- Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design.
PRODUCT PARAMETERS
| Item | Symbol | Description | Unit |
| Picture |  |
||
| Rated Voltage | VOLT | AC220 | V |
| Power | P | 50-80 | W |
| Protection Level | IP | IP66 | IP |
| Lighting Angle | θ | 120 | ° |
| LED Qty | / | 60/80 | PCS |
| Base Specifications | / | CREE3030 | |
| Anti-corrosion Grade | / | WF2 | |
| Explosion Proof Grade | / | Ex d IIC T6 Gb | |
| Light Efficiency | η | 120 | Lm/W |
| Frequency | f | 50/60 | Hz |
| Power Factor | PF | ＞0.95 | PF |
| Operating Temperature | TOPR | -20~40 | ℃ |
| Storage Temperature | TOPR | -20~40 | ℃ |
| Light Source | / | led | |
| Correlate Color Temperature | Tc | 3000-6500 | K |
| Color Rendering Index | CRI | ≥70 | RA |
| LED’S Operating Life | LIFE | 100000 | Hours |
| Start-up Time | T | ≤0.2 | S |
| Executive Standard | / | GB3836.1、GB3836.2 | |
| Weight | / | 3.5 | KG |

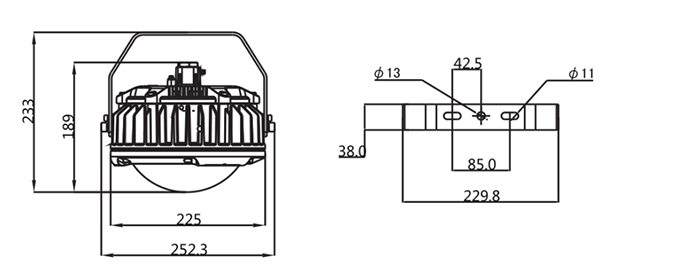

| Size | / | Φ225×190 | MM |
