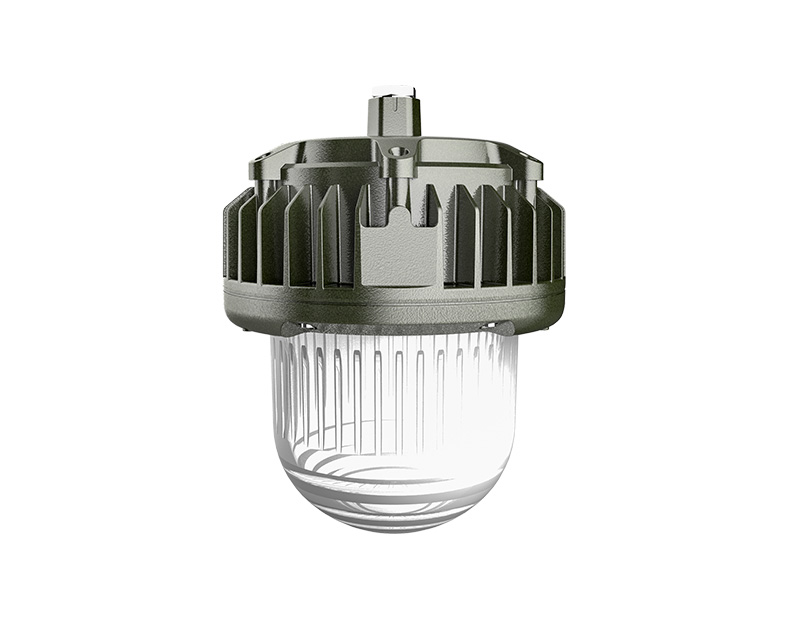

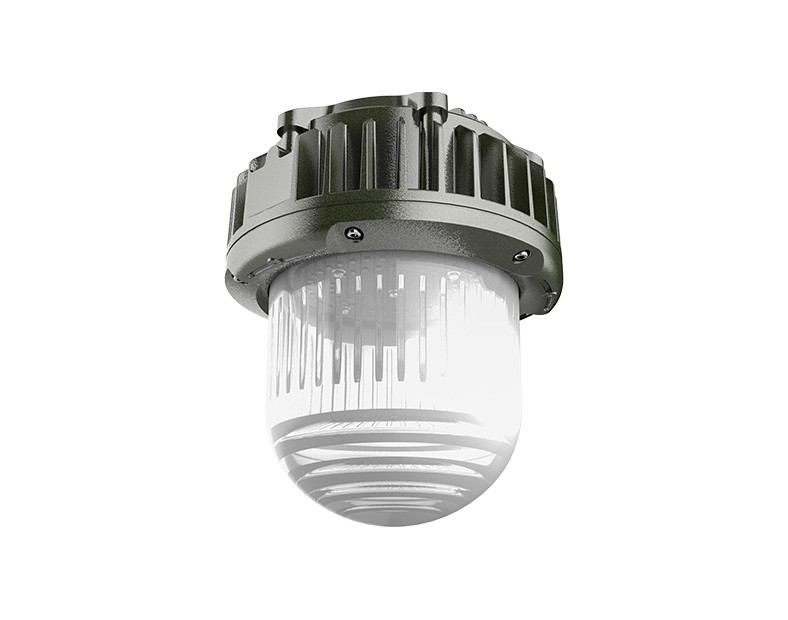

PRODUCT FEATURES
- Adopt imported Cree LED source, the average service life is up to 100,000 hours, the power supply adopts wide voltage processing, which can realize constant current output and has short circuit and over voltage protection, greatly improves the service life of the lamp.

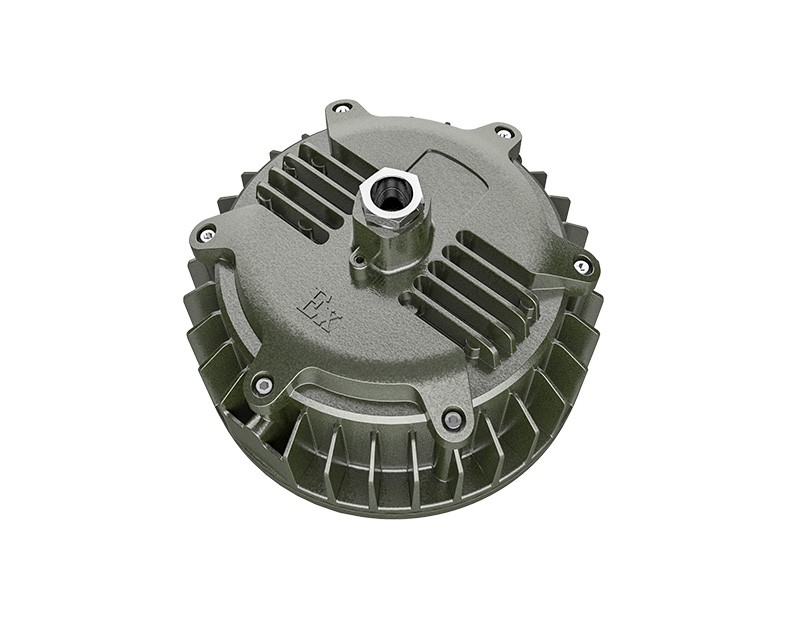

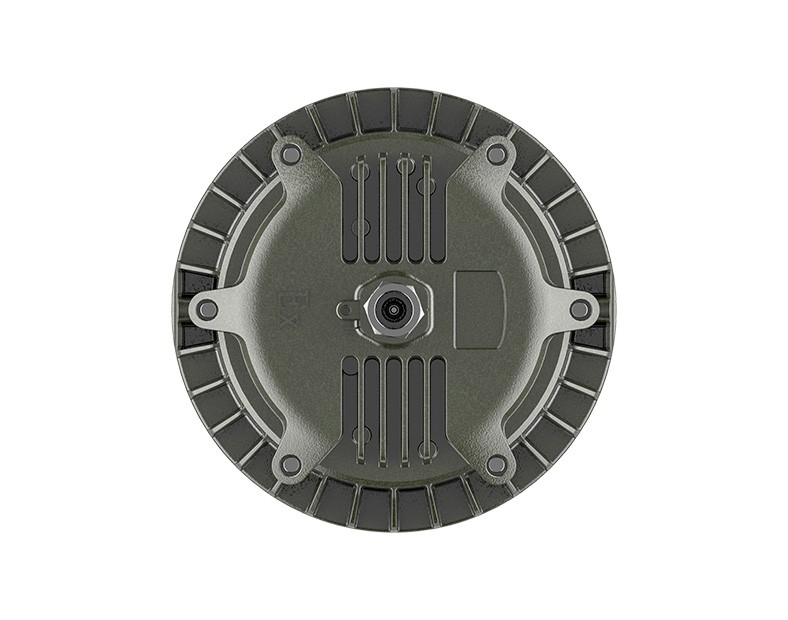

- The integrated streamline structure can better increase the heat conduction and further improve the heat dissipation performance.
- The light projection is uniform and soft, and is especially suitable for various low-top, platform, high-top, high-shed and other places as fixed lighting. The interior of the lamp body is provided with an anti-seismic material and a shock-absorbing structure, and can work for a long time at various high frequency and strong vibration sites.
- The larger power supply cavity design not only greatly satisfies the assembly space, but also further improves the heat dissipation performance.
- The protection level of the lamp body is IP66, the anti-corrosion grade can reach WF2, and the surface of the lamp body won’t corrode nor rust for a long time.

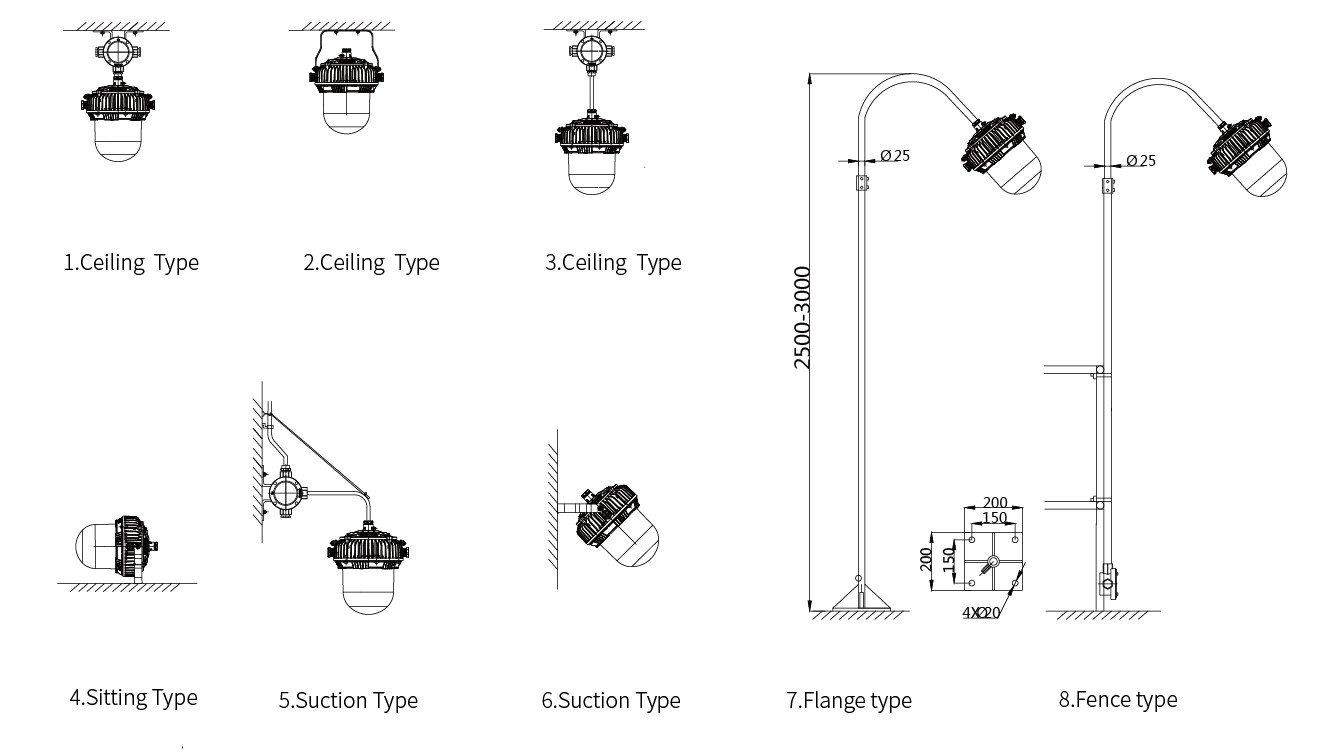

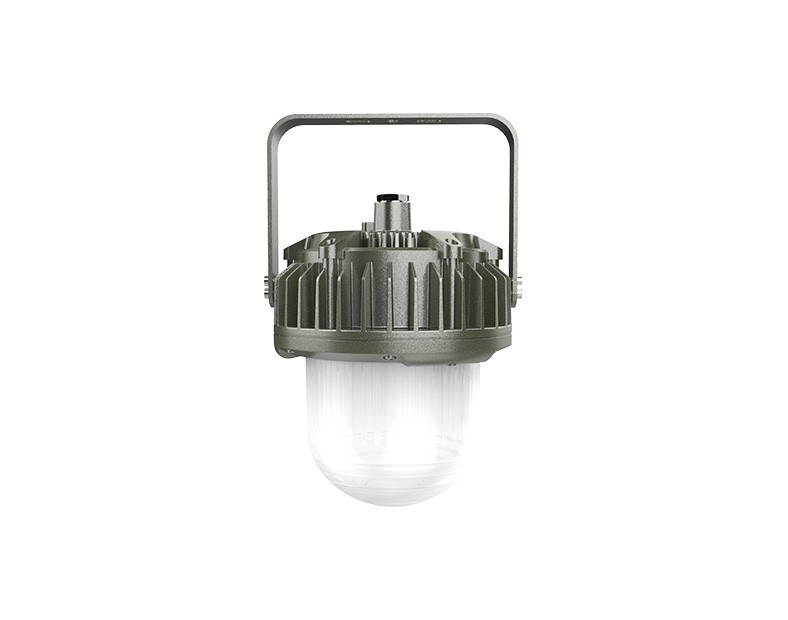

- Various installation methods such as ceiling type, curved rod type, flange type, U-shaped anti-vibration bracket(adjustable angles) are available.
- The transparent lampshade adopts diffused anti-glare Lingjing tempered glass, which has high purity, corrosion resistance and impact resistance, and the light transmittance can reach 95%-98%.
PRODUCT PARAMETERS
| Item | symbol | Description | Unit | |
| Picture |  |
|||
| Rated Voltage | VOLT | AC220 | V | |
| Power | P | 40-80 | W | |
| Protection Level | IP | IP66 | IP | |

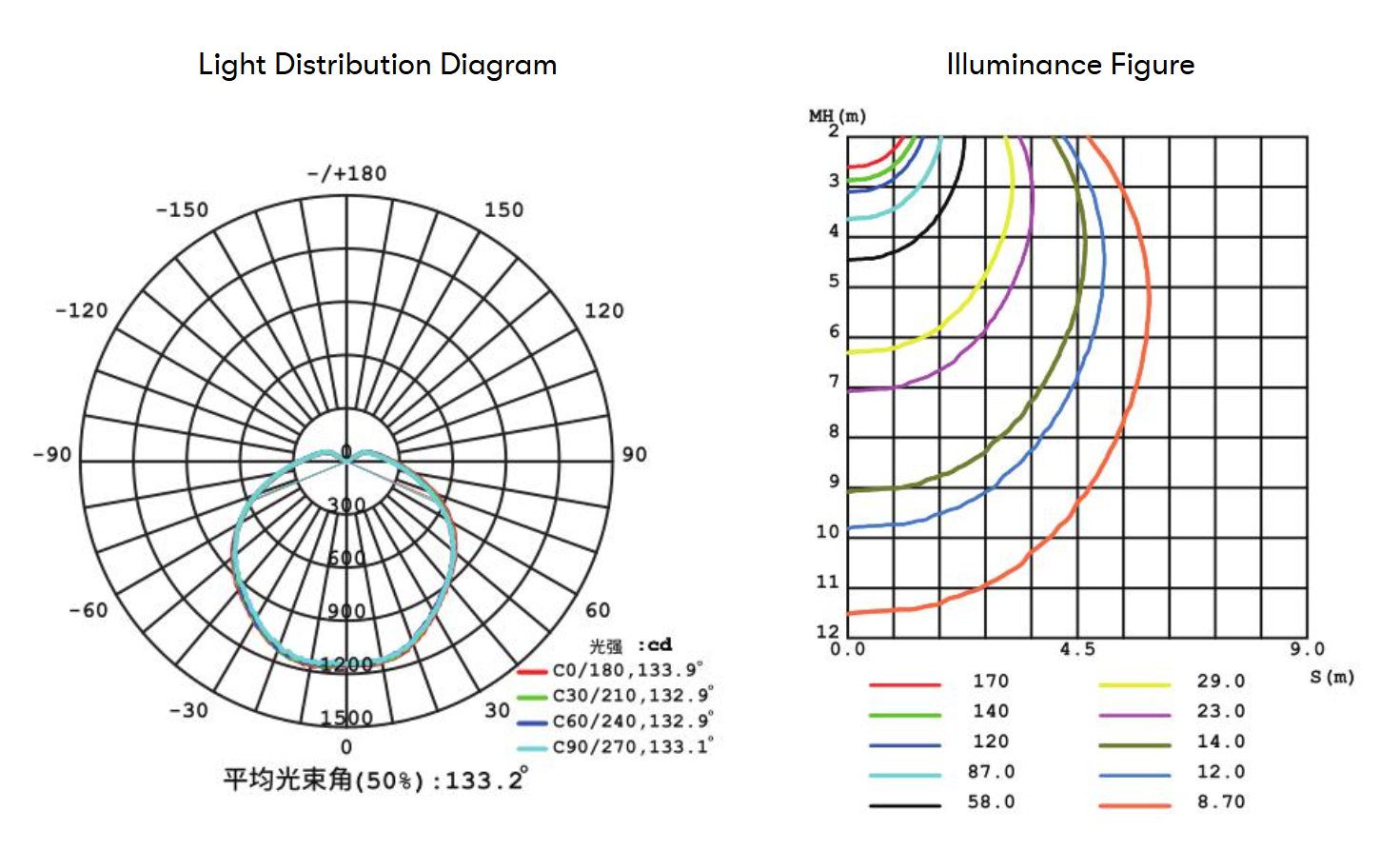

| Lighting Angle | θ | 150 | ° | |
| LED Qty | / | 60 | 80 | PCS |
| Base specifications | / | CREE3030 | ||
| Anticorrosion grade | / | WF2 | ||
| Explosion proof grade | / | Ex d IIC T6 | ||
| Light efficiency | η | 120 | Lm/W | |
| Frequency | f | 50/60 | Hz | |
| Power Factor | PF | ＞0.95 | PF | |
| Operating Temperature | TOPR | -30~50 | ℃ | |
| Storage Temperature | TOPR | -30~50 | ℃ | |
| Light Source | / | led | PCS | |
| Correlate Color Temperature | Tc | 3000-6500 | K | |
| Color Rendering Index | CRI | ≥70 | RA | |
| LED’S Operating Life | LIFE | 100000 | Hours | |
| Start-up Time | T | ≤0.2 | S | |
| Executive standard | / | GB3836.1、GB3836.2 | ||
| Weight | / | 5.0 | KG | |
| Size | / | Φ225×294 | mm | |

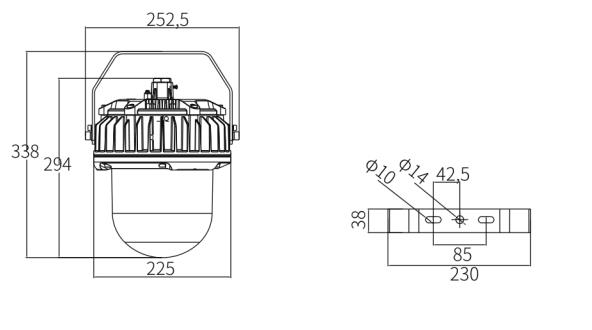

DIMENSIONS
