PRODUCT FEATURES
- Products can work safely in various flammable and explosive places.
- Cast aluminum alloy shell, surface spraying anti-static, corrosion-resistant, waterproof, dust-proof, can be used in high temperature, humidity and various corrosive harsh environments for a long time;
- Transparent toughened glass protective cover, good light transmittance, impact resistance, high light flux, energy saving, environmental protection and other advantages.

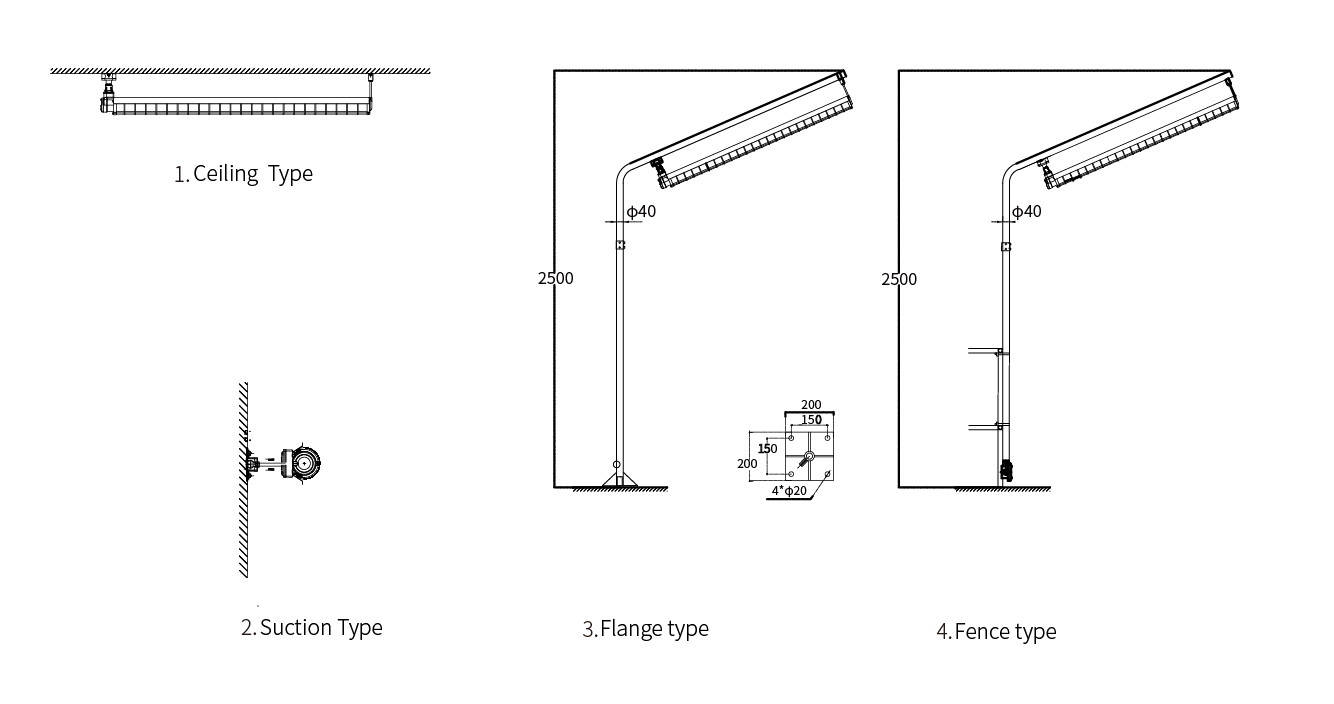

- Beautiful appearance, simple and reliable structure, easy installation; structural steel pipe or cable wiring can be;
- Independent wiring cavity design makes wiring more convenient and fast.
PRODUCT PARAMETERS
| Item | 符号Symbol | 描述Description | 单位Unit | |
| Pictures |  |
|||
| Rated Voltage | VOLT | 220 | V | |
| Power | P | 18/36 | W | |
| Protection Level | IP | IP65 | IP | |
| Lighting Angle | θ | 360 | ° | |
| Light Source Specifications | / | T8 Fluorescent tube | T8 led tube | |
| Anti-corrosion Grade | / | WF2 | ||
| Explosion Proof Grade | / | Ex d IIC T6 | ||
| Light Efficiency | η | ＞90 | ＞120 | Lm/W |
| Frequency | f | 50/60 | Hz | |
| Power Factor | PF | ＞0.95 | PF | |
| Operating Temperature | TOPR | -30~50 | ℃ | |
| Light Source | / | led | PCS | |
| Correlate Color Temperature | Tc | 3000K-6500 | K | |
| Color Rendering Index | CRI | ≥70 | RA | |
| LED’S Operating Life | LIFE | 50000 | Hours | |
| Start-up Time | T | ≤0.2 | S | |
| Executive Standard | / | GB3836.1、GB3836.2 | ||

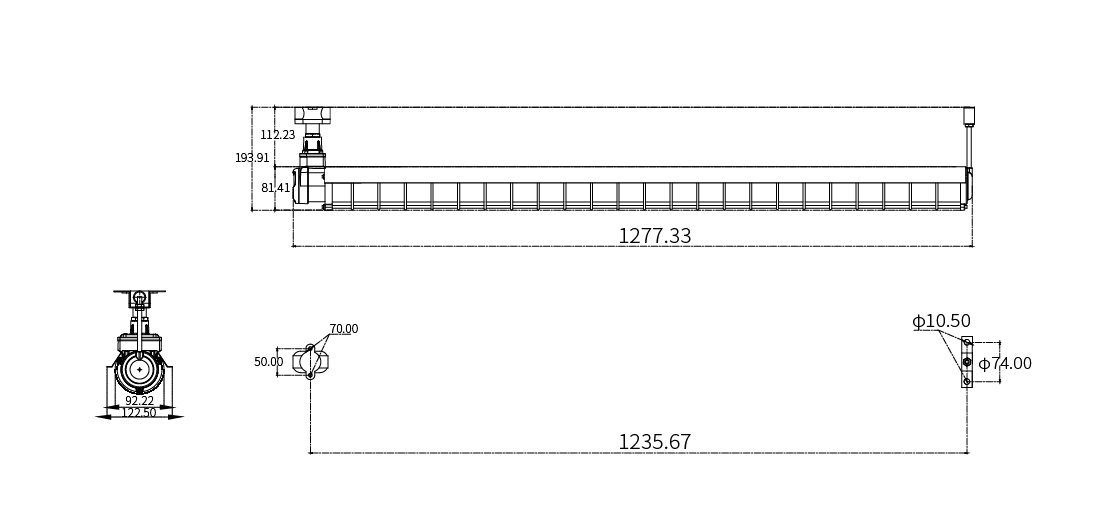

| Size | / | 1280*123*146 | mm | |
| Weight | / | 2.8 | KG | |
